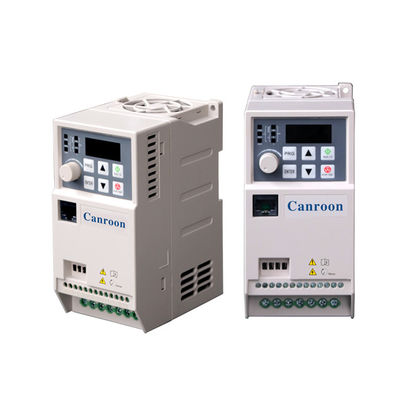

Professional Compact Variable Frequency Drive | CV800D Series frequency Inverter | Multi-Function VFD Motor Controller
उत्पत्ति के प्लेस ग्वांगडोंग, चीन
ब्रांड नाम Canroon
प्रमाणन CE ISO9001
मॉडल संख्या CV800D श्रृंखला
न्यूनतम आदेश मात्रा 1
मूल्य Negotiable price
पैकेजिंग विवरण कार्टन का डिब्बा
प्रसव के समय 3-5 दिन
भुगतान शर्तें एल/सी, टी/टी, वेस्टर्न यूनियन, पेपैल
आपूर्ति की क्षमता 2000 टुकड़े प्रति सप्ताह
उत्पाद विवरण
मॉडल संख्या CV800D श्रृंखला आउटपुट करेंट 2.5ए-380ए
निर्गम आवृत्ति 50 हर्ट्ज/60 हर्ट्ज प्रमाणपत्र CE/EU/ISO
प्रकार डीसी/एसी इनवर्टर निर्गम आवृत्ति विधा वेक्टर नियंत्रण ： 0 ～ 500Hz V/F नियंत्रण: 0 ~ 1000Hz
बिजली उत्पादन 0.4-15kw आउटपुट वोल्टेज 1-चरण （2S） AC160V ， 260V 4T ～ 0 ； 480V ， 2S ～ 0 ～ 260V
उत्पाद विवरण

Product Description

The Canroon CV800D Series Compact Multi-Function Inverter represents the next generation of industrial motor control technology. Designed for OEM manufacturers and system integrators, this advanced variable frequency drive combines powerful performance with space-saving compact design.

Engineered with sophisticated vector control technology, our VFD inverter delivers exceptional speed regulation and torque performance across various industrial applications. The unit features built-in PID control, multi-speed operation, programmable logic functions, and standard Modbus communication protocol, making it an ideal solution for automation systems requiring precise motor control.

With comprehensive protection mechanisms and user-friendly operation, the CV800D ensures reliable performance in demanding environments while reducing energy consumption and operational costs.

Key Features & Benefits

Advanced Control Technology

  • Vector Control Algorithm: Provides high starting torque and excellent low-speed performance

  • Precision Speed Regulation: Maintains ±0.5% speed accuracy for consistent operation

  • Automatic Torque Boost: Compensates for voltage drops under heavy load conditions

Multi-Functional Capabilities

  • Built-in PID Controller: Ideal for process control applications (pressure, temperature, flow)

  • Programmable Logic Control: Customizable operation sequences without external controllers

  • 16-Speed Pre-set Configuration: Flexible speed settings for complex operating cycles

  • Modbus RTU Communication: Seamless integration with PLCs and industrial networks

Compact & Efficient Design

  • Space-Saving Dimensions: Reduced cabinet space requirements (up to 30% smaller than conventional drives)

  • High Switching Frequency: Optimized for minimal motor noise and vibration

  • Energy Saving Algorithm: Reduces power consumption by up to 40% compared to direct online operation

Enhanced Protection & Safety

  • Comprehensive Protection: Overcurrent, overvoltage, undervoltage, overload, and short circuit protection

  • Thermal Management: Intelligent cooling system with temperature monitoring

  • Fault Diagnosis: Comprehensive fault recording and diagnostic capabilities

User-Friendly Operation

  • Intuitive Interface: Easy parameter configuration with multi-language support

  • Quick Setup: Copy function for rapid multi-drive configuration

  • LED Display: Real-time monitoring of operating status and parameters

Technical Specifications

  • Power Range: 0.4kW to 11kW (wider range available)

  • Input Voltage: 1PH 110V/220V ±15%; 3PH 220V/380V ±15%

  • Output Frequency: 0Hz to 400Hz (programmable)

  • Control Methods: V/F control, sensorless vector control

  • Overload Capacity: 150% rated current for 60 seconds

  • Protection Class: IP20 (standard)

  • Communication: RS485, Modbus-RTU protocol

  • Ambient Temperature: -10°C to +50°C (derating above 40°C)

  • Storage Temperature: -20°C to +60°C

  • Cooling Method: Intelligent fan control

  • Dimensions: Compact design (varies by model)

Applications

Industrial Automation

  • Conveyor systems

  • Packaging machinery

  • Assembly lines

  • Material handling equipment

Process Control

  • Water treatment systems

  • HVAC applications

  • Pump and fan control

  • Compressor applications

Specialized Machinery

  • Textile equipment

  • Food processing machines

  • Printing equipment

  • Plastic injection molding machines

Why Choose CV800D Series?

Reliability: Built with industrial-grade components for continuous operation
Flexibility: Adaptable to various motor types and applications
Energy Efficiency: Significant power savings with intelligent control algorithms
Easy Integration: Compatible with existing control systems and networks
Global Support: Comprehensive technical support and 18-month warranty

Certification & Compliance

  • CE certified

  • RoHS compliant

  • Meets international EMC standards

Ordering Information

Contact our technical sales team for:

  • Custom configuration support

  • Volume pricing discounts

  • Technical documentation

  • Application engineering assistance

Available through our global network. Request a free application evaluation today!

Note: Specifications subject to change without notice. Please refer to official product documentation for detailed technical information.

Specifications

Functional Description Specification Index
Input Rated Voltage, Frequency 3-phase(4T)AC380V, 47～63Hz; 1-phase(2S)AC220V, 47～63Hz
Allowed Voltage Range 3-phase(4T)AC320V～480V; 1-phase(2S)AC160V～260V
Output Voltage 4T, 0～480V；2S, 0～260V
Frequency Vector control:0～500Hz V/F control:0~500Hz
Overload Capacity 150% rated current 60s；180% rated current 5s；195% rated current 0.5s
Control Mode V/F Control,Speed Sensorless Vector Control (SVC)
Control Character

Frequency

Setting Resolution

 Analog Input Max. Frequency × 0.025%
Digital Setting 0.01Hz
V/F Control V/F Curve Three ways: the first is the linear torque characteristic curve, the second is the square torque characteristic curve, and the third is the user-set V/F curve
V/F separation 2 types: full separation and half separation
Torque Compensation Manual setting: 0.0~30% of rated output Automatic compensation: according to output current and motor parameter
Automatic Currentlimiting and Voltage-limiting During acceleration, deceleration or steady running, detect automatically the current and voltage of motor stator, and control it within bounds based on unique algorithm, minimize fault-trip chanc
Senseless Vector Control Voltage Frequency Character Adjust pressure/frequency ratio according to motor parameter and unique algorithm
Torque Character Starting torque: 0.1Hz 150% rated torque (V/F control) 0.25Hz 150％ rated torque (SVC) Operating speed precision in steady state: ≤±0.2％ rated synchronous speed speed fluctuation: ≤±0.5％ rated synchronous speed Torque response: ≤20ms (SVC)
Motor parameter self-measurement Without any restrictions, the automatic detection of parameters can be completed under the static and dynamic conditions of the motor to obtain the best control effect.

Current and

Voltage Restrain

 Current closed-loop control, free from current impact, perfect restrain function of overcurrent and overvoltage
Undervoltage Restrain during Running Specially for users with a low or unsteady voltage power grid: even lower than the allowable voltage range, the system can maintain the longest possible operating time based on its unique algorithm and residual energy allocation strategy
Typical Function Multi-velocity and Traverse Operation 16 segments programmable multi-segment speed control, a variety of operating modes are optional. Swing frequency operation: preset frequency, center frequency adjustable, state memory and recovery after power failure.
PID Control RS485 Communication Built-in PID controller (able to preset frequency). Standard configuration RS485 communication function.
Frequency Setting Analog Input Direct voltage 0~10V, direct current 0~20mA (optional up limit and lower limit)
Digital Intput Operation panel setting, RS485 port setting, UP/DW terminal control, or combined with analog input
Output Signal Digital Output One relay output
Analog Output 1-channel analog output, 4-20mA / 0-10V free switching
Automatic Steady voltage Operation Dynamic steady state, static steady state, and unsteady voltage for choices to obtain the steadiest operation
Acceleration and Deceleration Time Setting 0.0s～65000.0s min continuous setting, S type and linear type mode for choice
Brake Dynamic Braking Dynamic braking initial voltage, backlash voltage and dynamic braking continuous adjustable
DC Braking

Halt DC braking initial frequency: 0.00~[F0.10] upper limit frequency

Braking time: 0.0~100.0s;

Braking current: 0.0%~100.0% of rated current
Low Noise Running Carrier frequency 1.0kHz~16.0kHz continuous adjustable, minimize motor noise
Counter A built-in counter, facilitate system integration
Operation Function Upper limit and lower limit frequency setting, frequency hopping operation, reversal running restraint, slip frequency compensation, RS485 communication, frequency control of progressive increase and decrease, failure recovery aomatically, etc.
Display Operation Panel Display Running State Output frequency, output current, output voltage, motor speed, set frequency, module temperature, PID setting, feedback, analog input and output.
Alarm There are 8 operating parameter records including output frequency, output current, bus voltage, input terminal status, output terminal status, inverter status, power-on time, and running time when three faults trip
Protective Function Overcurrent, overvoltage, undervoltage, module fault, electric thermal relay, overheat, short circuit, default phase of input and output, motor parameter adjustment abnormality, internal memory fault, etc.
Environment Ambient Temperature -10°C ~ +40°C (please run the VFD in derated capacity when ambient temperature is 40°C~50°C)
Ambient Humidity 5%~95%RH, without condensing drops
Surroundings Indoors (without direct sunlight, corrosive or flammable gas, oil fog and dust)
Altitude Running in derated capacity above 1000m, derate 10% for every 1000m rise.
Structure Protection Level IP20
Cooling Method Air cooling with fan control
Installation Method Wall-hanging type

About Canroon

Canroon is a remarkable energy saving solutions provider, specialized in frequecy inverter for more than 12 years, whose products and solutions are widely used in shipbuilding, aviation, automotive, metallurgy, chemical engineering, petroleum pipeline constrution, newmaterials, new energy and other fields.

Canroon has a professional R&D team, committed to convert its wisdom into leading products and services to meet the needs of different customers, continuing to create values for customers.



Basic Running Wiring

The wiring parts of inverter include major loop and control loop. Open the cover of /0 terminals, users can seethe major loop terminal and control loop terminal, and must conduct the wiring according to the followingdiagram.
